Weather Station for Schools: project update
Back in February Dave Honess blogged about our Weather Station Project for schools. Here’s what we’ve been up to since.
The main news is that we have selected the 1000 schools worldwide who will be receiving the kit and the hardware side is done, dusted and ready to go. Here’s what the lucky schools will be getting:

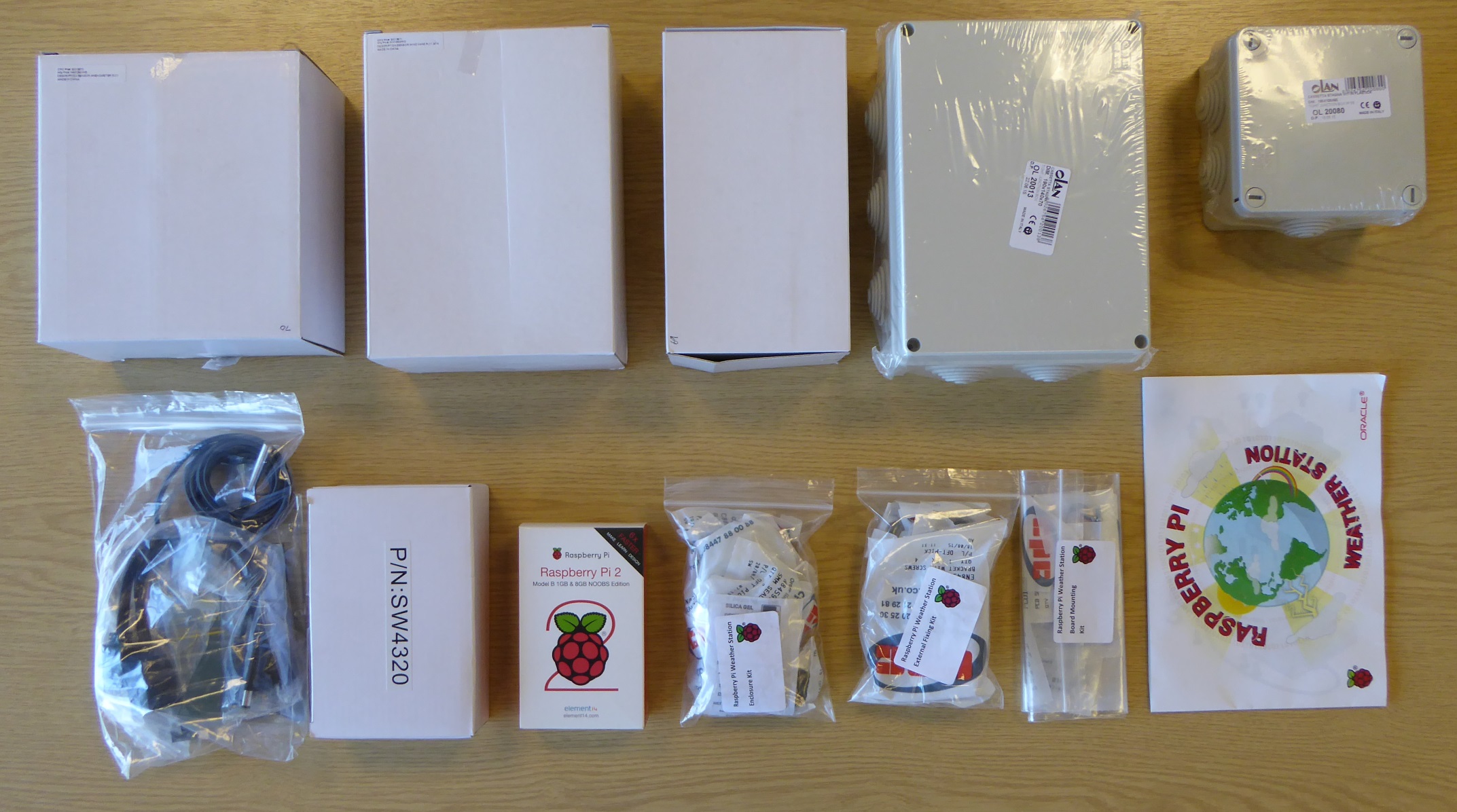

Inside is everything that you need to build a Pi controlled weather station:The hardware is only part of the picture though and malicious logistics lurk in every aspect. Things that seem easy rarely are—even something like getting the colours on the logo correct can be a pain. The packaging in particular caused some snags: getting all of those little bags into a good looking box might seem humdrum but it’s not trivial. Sam “Carton Mage” Alder has worked his magic on the quick start leaflet and the sleeve for the box.

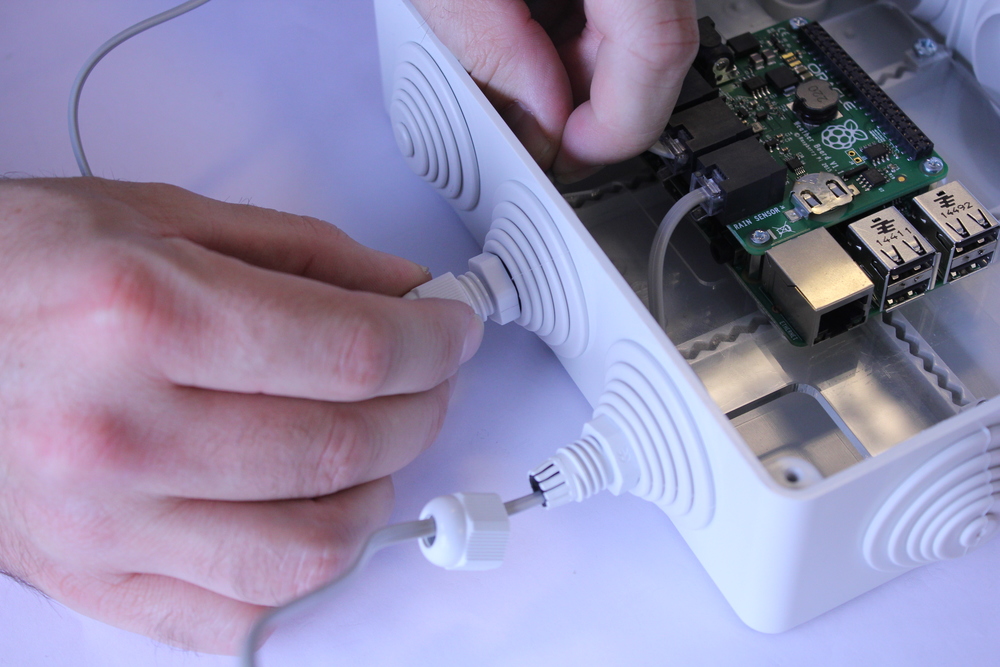

The other three cuppa problem was the enclosure for the hardware. This seems simple: get a waterproof box, jam in your gubbins and gizmos, and Bob is your Pakamac-wearing uncle. The problem is that self-build kits are not finished consumer products and it’s simply not possible to allow for every configuration of set-up and siting of the unit, so we’ve tried to make it as flexible as possible. The two enclosures (one for the Pi and HAT and one for the air sensor) are IP55 rated, which means that they are protected against water jets (from a 6.3mm nozzle in case you were wondering). But this is no good if the wires into the box are not sealed properly and I’ve spent more time playing with glands and bushings (missus!) than I care to think about.
The Ethernet cable—which as well as handling data also delivers power—was especially irksome but we think we’ve come up with some decent solutions. The team at CPC, who are handling the build and packaging, have been key in this, helping us to select and test solutions and dealing with my endless “How about if we try this?” emails.
On the software side, Oracle are putting the final touches to the database that will allow schools to share their data and to access data from Raspberry Pi weather stations around the world. There’s huge scope here for learning how to collect, analyse and visualise large data sets, increasingly useful skills in this age of data. As well as educational resources for this we’ll have lesson plans and worksheets for using the weather station locally, and for exploring and learning computing in this context.
So when will the kits ship? Soon. Probably November. In retrospect the hardware side of it was just the start—this is a large scale and ongoing project for us and we have plans to get the stations into many more schools once the initial 1000 are shipped. We also hope that the kits will go on sale at some point and we’ll let you know as and when this happens. Keep an eye out for updates here, Twitter and other social media.
69 comments
adam mclane
We can’t wait to buy one of these for our family. Such a fun project.
Amaury Van Espen
How much does cost the kit and where to get it to take part in adventure ? (application seems to be closed)
W. H. Heydt
The last paragraph answered my question (that is, a commercially available version is planned), but another poit to note (for me, anyway), Bob is (or was, dead now) my uncle.
wallyware
Sorry to hear about your Uncle Bob.
Fester Bestertester
Likewise.
Was/is Fanny your Aunt? That’s the other half of the expression: “… and Fanny’s your Aunt”. How many know/knew that?
Ismail Ali Gago
I am a teacher working in one of the 1000 selected schools and willing to start working with the kit as soon as possible.
Thanks in advance.
Ismail Ali Gago
IES Cervantes
http://ies.cervantes.madrid.educa.madrid.org/indexIn.htm
Madrid – Spain
Brian Williams
Any hope of the documentation, PCB layouts etc? They must be pretty finalised by now. Surely just a matter of putting them in a known download location?
Stephan Ditz
Hi,
is there any chance to buy the weather station as a family project or is it only for schools. I would like to have one to set it up with my son.
Please let me know
Brian Lu
It WILL soon be commercially available.
Vince Skahan
Any idea what price these might sell for to the general public ? Will the waterproof cases be available ?
(also – major fail with the Ikea-style cartoon instructions – please don’t go that way. Please.)
Clive Beale — post author
The cases are off the shelf enclosures (and would be part of the kit). Price as yet unknown.

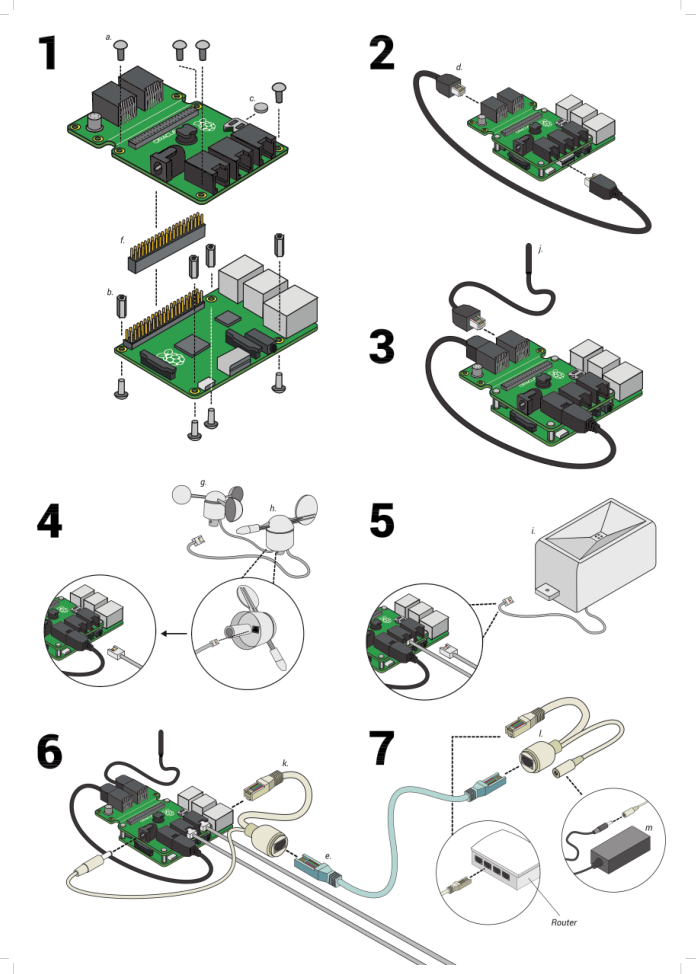

As for the illustrations, what you see is only one side of a written quick start guide. (Though if you don’t speak English you *can* actually put the kit together based on the pictures. Which is the whole point.) There will also be detailed step-by-step guides with photos online and possibly videos. When we “fail” we like to do it in a major way :)
David Honess
Just want to say major credit is due to Clive for taking this project on when it was in quite a chaotic state and turning it around so everyone can get their free hardware. Astro Pi had swallowed nearly all my time and this project started to suffer as a result of that.
Brian Williams
Any hope of the documentation, PCB layouts etc? (In case you didn’t see my earlier note…)
Neil
Step 2: You plug the board into …
… itself (???)
Keith Adley
That looks correct, the end piece of the PCB is a “snap-off” air and soil sensor so that it can be positioned away from the main components if required – see the link here https://www.raspberrypi.org/wp-content/uploads/2015/02/Weather-HAT-labels-500×355.png
Clive Beale — post author
Exactly! The enclosure for the sub-board with the air sensor on is not sealed (for obvious reasons :))
That guide is for testing before deployment, so the boards are not yet separated.
Neil
I new dat.
Jarle Teigland
So are the set of sensors / measurements still the same as from the outset as in described here ;
https://www.raspberrypi.org/blog/school-weather-station-project/
Rainfall
Wind speed
Wind gust speed
Wind direction
Ambient temperature
Soil temperature
Barometric pressure
Relative humidity
Air Quality
Real Time Clock (for data logging purposes)
The 4 external sensors will then be airspeed, direction, soil temp , rainfall whilst ‘air unit’ on board handles the rest of the measurements ??
Chris S.
I build a little temperature recording station with a Raspberry Pi. It records the temperatures in my apartment and also takes care of the visualization:
http://pi.tafkas.net/temperatures/
Dutch_Master
Typo: “allow schools to share data their data”
One too many data ;-)
(yes, I’ve been absent for a while. my (very) old browser decided it didn’t like the blog engine anymore and crashed every time. New OS and browser fixed that)
Clive Beale — post author
Fixed, thanks :)
Jarle Teigland
Brilliant kit – huge potential in both computing , science subject(s) and cross curricular activities in geography etc. I presume the PiCam could be used with this as well ?? That would make for a killer weather station streaming scientific data and visuals all in one unit !! I mean having on set up in or near a volcano / geyser would be absolutely amazing ;0)
Mark
Is there any chance that it could be expanded to include recording solar radiation and UV index?
Jerome
I, like many others, would love to purchase one of these for private use. Perhaps there’s a funding opportunity here; for every station sole (at double the cost) one station is given to a school on the waiting list.
Ralph Corderoy
Once schools start collecting all this data and passing it to Oracle, will the general public be able to access it? As the number of participants grows, it would be a valuable resource for weather analysis to amateurs.
Pete Stevens
(test).
I definitely want to control the weather with my Raspberry Pi. Especially if I can have localised thunderclouds.
Greg Cope
Looks like is has a Power Over Ethernet kit?
Any details on the parts?
Clive Beale — post author
It’s a passive PoE splitter like this: http://www.seeedstudio.com/depot/Passive-PoE-Cable-Set-p-1175.html
Plus a 24V power supply like this: http://cpc.farnell.com/powerpax/ptd-24010v/international-ac-dc-psu-24v-1a/dp/PW02744
Eric Gildersleeve
Does this use weewx software for the engine? Looks awesome. Need to incorporate a webcam too so that it can upload data to various online sites.
Vince Skahan
agree – weewx would be a fabulous way to use this gear – just write the driver and all the other stuff is done (database, upload to CWOP/WU/PWS/etc.) – any chance of getting a unit in advance to somebody in the weewx development community to take a crack at it before the public release ? Lots of us would probably be willing to try to do the driver…
Anthony
I just came across this project for the first time and all I can think is wow!
As a homeschool father of three and part of a very large homeschool community, my wife and I would love to get our hands on this kit. What an awesome resource to share not just our household but the many associations we have.. Boy Scouts, homeschool co-ops, church, etc. etc.
I hope these units become available before too long for those outside the original launch. Congratulations on the impending launch.
Jack
Will this data also be passed on the APRS (www.aprs.org/aprs.net/aprs.fi) infrastructure as Civilian Weather Observations (CWOP) (wxqa.com)? If not, will the software be configurable to allow it to do so? There is already a robust infrastructure out there and no sense in re-inventing the wheel!
Jack
KCW
This can easily be done by a simple Python script. I am doing this for month already.
Tony Roof
Can’t wait till I can buy one and put it together with my nieces
Adriano Mazetto
Estamos aguardando ansiosos aqui no Brasil.
Stephen Richards
We are also one of the lucky thousand schools. We have a fledgling maker community starting up at our school masterminded by one of our talented year 9 students.
They have just rebuilt a computer network for CS lessons, over 3 rooms using pis and donated old desktop computers.
I cant wait to put this into their hands as well and get them to start a blog about it.
exartemarte
You have my sympathy, Clive. I used to work on radar aerials: water is your enemy.
Philip Reese
I’d like to build my own weather station. It would be useful to know what sensors you’ve chosen. Could you release further technical details?
Erik
Just wanted to add my voice to the ones who are looking forward to buy this kit. It looks awesome, and judging from the responses here, will have great community support as well.
Looking forward to have a significant network of new Civilian Weather Observations with it.
Derek G
I guess you guys know what you’re doing, but all the other weather stations I know of have the console inside and only the sensors outside, with wifi comms between them. That avoids having to weatherproof the delicate stuff. Why did you decide to put the RPi outside?
Declan Barry
As one of the 1000 schools, our HOD is very excited about this because I never told him I was putting the school forward. He runs a computer programming/coding club after school and was looking for something to focus on so that the Students can see the practical side of programming in modular format. :-)
Nikos
I am also a teacher expecting to work as one of the 1000 selected schools.I still waiting to receive the kit and to join the project. ( & wishing to start working with the kit as soon as possible —do you know sth about the kid?) .
Thanks in advance
A School from Greece
2 gymnasium charilaou
We want also to join you in a forum (with a title : a weather station for schools).
Clive Beale — post author
Hi Nikos — keep an eye out for emails, we are almost ready to go.
Declan Barry
Sounds good Clive. Can’t wait. Keeping a good eye on the emails. I hope our managed service email filtering system doesn’t start to play up now!!
Declan
Suzanne
I hadn’t received any email to say that our school was selected. I did notice others who obviously had because they knew they were selected. But today I received an email saying that my school should receive a kit soon. Does this mean my school was selected and I just didn’t get an email notifying me OR did I receive the email informing me about the shipping of the kits in error? I’m hoping the former is true. Fingers crossed.
Clive Beale — post author
Yes! As per email, I suspect the first email bounced / was filtered.
Suzanne
Thank you very much. I am so so pleased about this. Great news!
Suzanne
Has the email gone out with the link for confirming shipping address? I haven’t received it as yet.
Matoula
Does anybody interested in e-twinning project? If ok you can contact me through e-twinning platform.
I am an informatics teacher in Greece
(Secondary School 13-15 yrs )
Mike C
We at Hanoi International School would love to be a part of this. Please let us know when you can ship to Vietnam.
Thanks
Ruud Koortens
Has the email gone out with the link for confirming shipping address? I haven’t received it.
Clive Beale — post author
Check your email in about ohhhh ….. 48 minutes!
Ruud
Thanks for the reply, Clive. When will the package be sent to the school? In about a week the school will be closed for two weeks – Christmas break.
Regards, Ruud
Clive Beale — post author
Looks like January now — we don’t want to send them over Xmas break (of course different countries have different holidays!)
Ruud
Hello Clive,
Xmas break is over, can you tell us when the kits will be send to the schools?
Regards, Ruud
Djamil B.
Missed the deadline for registering as well. Spoke to my kid’s science teacher and he’s very interested. At the very least, can we have units for purchase? I know some schools / kids / parents would love to take part in this, kind of like the FLL (First Lego League) where each team is expected to pay for the parts.
Ruud Koortens
Hello Clive,
realy waiting for news since last week, can you tell us when documentation is ready and the box will be shipped?
Thanks, Ruud
Ian
I too would love to purchase one of these kits for use at work.
We are in the process of building an agricultural centre of excellence for research, development and educational use and this would be perfect along with many other pi based projects I’m proposing.
Errol
Have the Raspberry Pi Weather Stations been Shipped?
Watauga High School
Boone, North Carolina
Paul Targett
Any more news on being able to buy one of these kits? I think the buy one donate one to a school model seems to be popular and would suit me too.
Goran
magic monday, according latest email update :)
Paul Greenwood
Is there any update when this will be released to the wider community? My little station has failed and I am looking at a new one.
Of course, if the Pi is available, then that is the top of the list.
Clive — post author
We’re working on this – in the meantime you can connect most off the shelf stuff to the Pi directly (or even make your own!), the Weather Station HAT just makes it neater and more straightforward and adds extras such as a realtime clock and Power over Ethernet.
david webster
I’m sure there’s huge potential demansd for a wider release. I’ve had a weather station going for years and keep my eyes peeled for something better and I’m pretty confident there’s nothing as good as this kit unless you spend a <<>> of money.
So can I add my vote for two stations – one for myself personally and one to set up with the breakfast club at my son’s school.
Guillaume
Hi Clive,
My students ask me weekly news … Could you try to give us news ? Some of them leave our school at the end of the year and they would like to add them to the building before leaving.
Philippe
Hi,
Just got mine. Congratulation for the amazing work worth waiting a year !
A frog and an umbrella in a big wonderful box. I just need to get the water bowl and a ladder :-) :-) :-)
thanks again.
The year is almost over (9 weeks) for us. I guess we will be using it next year for computer classes. If I can buy three more …
Cheers,
Philippe
Goran
Where are you from Philippe?
Philippe
Hi,
France, La ferté Sous Jouarre (77) near Paris.
I opened the box yesterday, but most kids are for outings this week and I have to wait until they are back to do something … I can’t !
Cheers
Philippe
Scott Bridges
I’m guessing that our school wasn’t selected. Maybe we can look at the product again when it is commercially available. Are the 1000 schools posted on an interactive map? My students are interested in global distribution of kits and seeing the big weather data picture as it develops.
Scott
PdP, Haiti
