Art Showcase: Binaudios
Hey all – Rachel here!
I have spent the last year talking with lots of artists who are making amazing things with Raspberry Pis. Every day my inbox is PINGing with exciting progress news. So I’m going to start showcasing some of these projects on the blog. I find them incredibly inspiring – I hope you do too!
I’m going to kick off with a piece from one of my favourite artists: Dominic Wilcox. I bet you’ve seen some of his work kicking around the internet – He made the GPS shoes which guided you home and did some narrative sculptures inside watch faces.

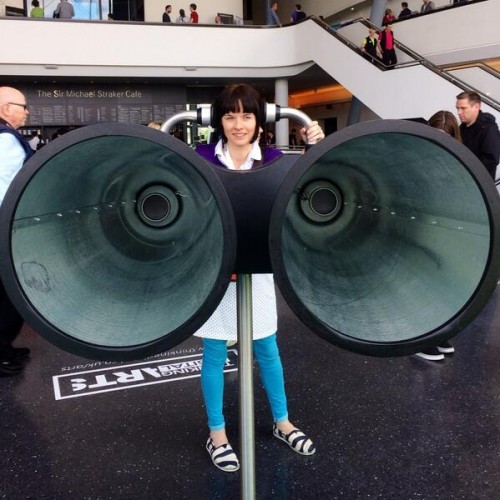

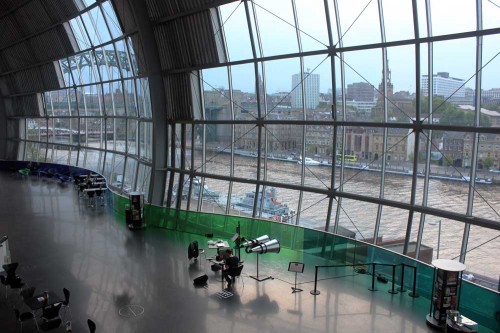

This time he’s partnered up with Creative Technologist James Rutherford to produce Binaudios; a device that enables the user to listen to the sounds of the city – at the moment it’s installed in the Sage Gateshead music discovery centre.

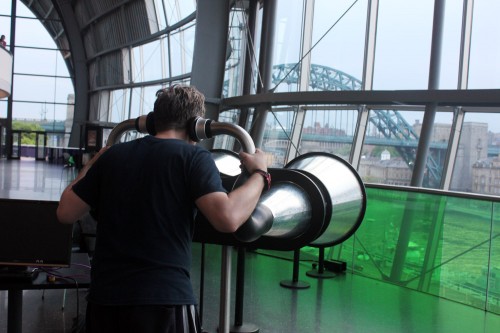

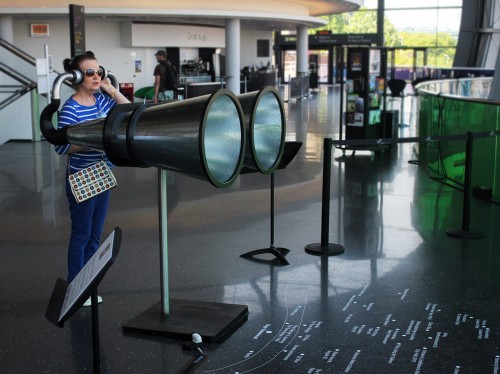

Taking tourist binoculars as inspiration, the Binaudios can be pointed at over 40 different locations, seen out of the Sage Gateshead windows. Turn the giant listening cones toward the football stadium to hear the crowd chanting or to the Tyne Bridge to hear King George V’s speech when he opened the bridge in 1928. Point it toward the park to listen to sounds such as skateboarders and local tennis players.
As the Binaudios are rotated the stereo sounds move from one ear to the other creating a real feeling of listening to the city across the river.
I’ve met loads of ‘Creative Technologists’ on my travels. They believe creativity and art are the driving forces behind the technology they make.
James describes his work as “somewhere between code and art”. He mainly creates software; developing visualisations, data tools or games.
Binaudios was his first Raspberry Pi project AND first go with Python! Just for you guys, he has very kindly written up how Binaudio is put together:
How Binaudios works:
Although Binaudios was developed to look like an analogue device, there’s a small selection of electronics concealed within the central wooden box. A USB lead runs up the central column, powering a Raspberry Pi. This is connected to speakers within the metal cones and a USB hub. The hub adds some extra flash memory and has a couple of ports for attaching a keyboard and mouse for debugging.
Dominic recorded a selection of sounds from across Newcastle. I load these when the device boots. There are around 40 of them, spread across the 180 degree range of movement provided by the ear-cones.
The Pi has a PiBorg XLoBorg sensor attached to the GPIO port. The XLoBorg returns a 3-axis reading of the magnetic field at a point. The Python script very roughly converts this into a compass heading (to do this properly is extremely complicated- so this is a bit of a hack). I spread this heading into two angles a couple of degrees apart to fake some left/right ear separation, pick the sound clips within a small range of these and assign some volumes. The volume profile drops-off over a few degrees which produces a naturalistic ‘telescope’ focus effect. The left/right separation also enhances this as the unit is turned.
The rest is all about smoothing. I debounce the output of the XLoBorg (it has a slight natural waver), ensure volume levels are adjusted gently (audio buffering can cause the sound to chop otherwise, which is very unnatural) and keep the sounds playing even when they are a few degrees out of audio range (this means that sounds don’t necessarily need to restart from the beginning when they are back in ‘view’).
Gotchas
The XLoBorg is a sensitive bit of kit, and magnetic fields are complicated (who knew!?). I needed to spend some time calibrating and recalibrating. Slight vertical misalignment seems to shift the compass heading much more than I first anticipated. It’s a very intriguing bit of hardware and I look forward to playing with it some more!
My test set of samples worked wonderfully, but the program failed critically when I got the real clips- some of the sounds would work, but the rest would make a single pop, or a loud, painful high-pitched wave. I never fully figured out why, but I think I was maxing out Pygame’s audio channels. Originally I was playing all of the sounds simultaneously and just shifting the volumes around (so that all but a few were zero), but I switched this to just trigger those within a small angle range – so it now plays maybe four or five at the same time. There was no failure response from the code, so I spent a manic day trying to squash, re-encode and generally poke the samples about without error reports to work on. Thankfully, the fix seems reliable.
This was my first physical project, first Pi project, and first slice of Python charming!
You can see them in action in this video or you can go and visit in person!
Binaudios was commissioned by the awesome Suzy O’Hara at Thinking Digital Arts.
18 comments
Michael Horne
Truly inspiring. Artists like James are doing some fantastic work with the Pi – they’re on the cutting edge.
Michael Horne
And Dominic, of course. Pressed submit without proof-reading. What a durbrain.
Jack
This is the next best thing to Farnsworth’s smelloscope.
ArchimedesPi
Not to be bashing his work, but couldn’t he have used a rotary encoder instead of a compass? It could have been more reliable.
AndrewS
That was my initial assumption too, before I read that he was using a magnetometer ;-)
James Rutherford
A potentiometer would have given some good accuracy, but I was a little concerned that solution would introduce a fragile (snappable) component – and I wasn’t sure how to seat it within the piece.
The magnetometer has it’s own challenges (especially around interpreting the data) but worked out well in the end.
Another fallback option I considered was to have a Pi camera pointing up from the base watching a coloured spot on the base of the cones- though that might have involved some coding complexity and likely been heavy on the processor. I’m glad I didn’t have to go there! :)
Nic
Using a magnetometer means that it doesn’t need to be re-calibrated if it is moved to a new location. It “just works” (assuming no magnetic interference…)
BlueSky
Is that the latest design from beats audio?
Duckking
Am I the only one who was hoping he hid 40 Raspberry Pis with microphones all around the city and was playing the actual sounds of the city. Somehow I think that’d end badly. However, I think this project is awesome in it’s current form.
Rachel Rayns
This is an interesting idea – I’d love to see it recording and delivering live sound from other cities, maybe even other countries, in whichever direction.
Not a small task though!
Raspberry Pi Staff Helen Lynn
Maybe it’s possible to “smudge” the audio so speech isn’t intelligible, in case of unsavoury language or verbal indiscretion near the microphones.
James Rutherford
It would certainly be an interesting twist. Perhaps a comment on surveillance society!
In another direction, the satellite Pis could feature a non-audio sensor – e.g. if each one had a Geiger counter, they could contribute to a vista of clicks.
AndrewS
I guess a simpler alternative could be to ‘point’ it at internet radio streams, broadcast from different countries?
Declan Malone
Interesting, but … the “Sound Mirror” idea pre-dates this by nearly 100 years
James Rutherford
It certainly has ancestry of weird and wonderful listening devices!
Gee ‘The Rabid Inventor’
A good bit of Pi smuggling. Looking at it to start with I was wondering how it was Pi related but some very sleek design.
Keith The Traveler
Some clever work, I would like to try this. Now show us that Nintendo Guitar again haha :D
Homer L. Hazel
I first thought “Wow, that’s some invention that can hear through those windows!” and then I read the article. It’s neat, but he is simulating sounds. I could not do it, so it is still very impressive.
