My display setup achievement :)

Tue May 29, 2012 7:29 pm

From Hong Kong to Estonia:
3.5" TFT LCD (320x240) and TouchScreen USB controller (Touchscreen panel itself has'nt arrived yet)

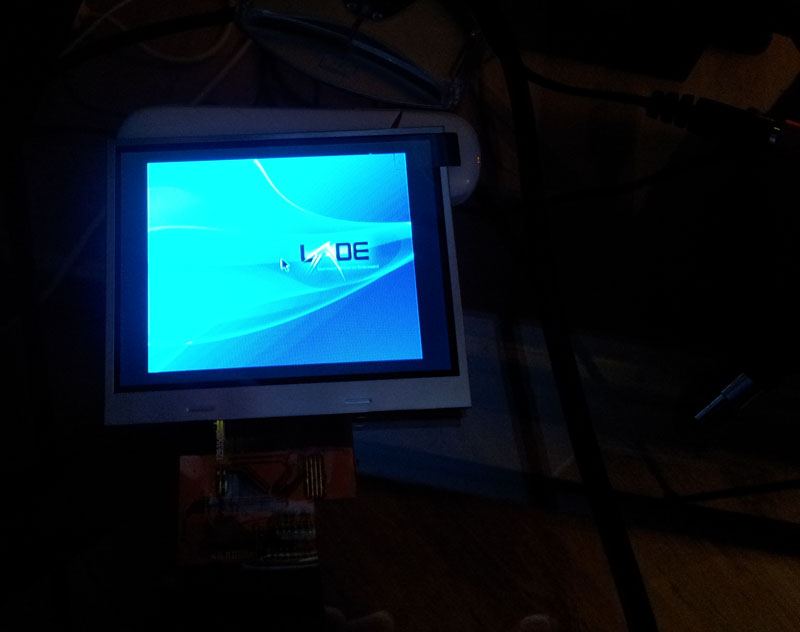

Next day, after getting correct RCA cable and 12V adapter and connecting with RPI:

Costs (Ebay) (All items brand new):
3.5" 4-wire touch panel 4.99GBP
3.5" TFT LCD 14.52GBP
Touchscreen controller 11.60GBP

So pretty cheap setup. I definately recommend getting some cheap composite display for home projects (you can find lots of those on ebay). You won't get the best video quality over a composite cable, but hey... it's 14.52£ :)
4.3" and larger ones are sometimes actually even cheaper and easier to find than 3.5.

Will update this thread when touchscreen arrives and how I will manage to get it working (drivers etc). Hopefully someone will get a nice overview of prices and won't rush to buy 150€ displays :)

hackery21
Posts: 56
Joined: Wed Apr 18, 2012 9:11 pm

Re: My display setup achievement :)

Wed May 30, 2012 4:23 am

I've managed to get find a nice LCD screen that is 10.2" and an HDMI board for it (HDMI IN! :) ) and I have
Managed to get a deal with a free power cable, but... It's an expensive setup, $200..... Yup...
And another problem, the screen uses a separate
Power supply so... If I decide to make a laptop with this I would be able to power the pi with a battery, but ... You would need to plug in power for the screen... What do you think I should do?...

crispus
Posts: 1
Joined: Tue May 29, 2012 2:35 pm

Re: My display setup achievement :)

Wed May 30, 2012 8:19 am

Hi alanrpi.

I bought some time ago one 7'' touchscreen that have VGA and A/V inputs. I connected through A/V input, but the image on the screen is awful.
I think that I should lower the resolution, and make it 4:3, not wide (is this default value?)

Can you share the settings used with your screen?

Thanks.

alanrpi
Posts: 8
Joined: Wed May 16, 2012 5:05 pm

Re: My display setup achievement :)

Wed May 30, 2012 2:42 pm

crispus,
sdtv_mode=2
sdtv_aspect=1
framebuffer_width=320
framebuffer_height=240

alanrpi
Posts: 8
Joined: Wed May 16, 2012 5:05 pm

Re: My display setup achievement :)

Thu May 31, 2012 7:44 am

Touch panel finally arrived. 6 hours of hardcore work: getting the touchscreen to work was easy (needed kernel recompiling and enabling touchscreen modules), but extremely hard was getting it calibrated (most of calibration software did not work with ARM and did not compile). Finally I managed to get it to work with tslib, but that had to be compiled from source and patched with egalax patch. Tslib that I installed by apt-get did not work with my panel.

Here is the result:
http://www.youtube.com/watch?feature=pl ... Dw7oB-axzs

(Not the best calibration in video, managed to get perfect result after making video).

hackery21
Posts: 56
Joined: Wed Apr 18, 2012 9:11 pm

Re: My display setup achievement :)

Thu May 31, 2012 6:19 pm

Really cool, but I suggest a larger screen and touching panel.

thexman
Posts: 259
Joined: Sat Apr 07, 2012 2:18 pm

Re: My display setup achievement :)

Thu May 31, 2012 9:32 pm

nice work alanRPI

hows about a how too a parts list and a where from im interested in a small screen but more like a 8" 10 " type let me know if you have any other useful stuff

Great work.
one armed controls engineer, my grammar is bad but lets face it most keyboards don't suit a one armed man

Kazaii
Posts: 9
Joined: Tue May 29, 2012 8:21 pm

Re: My display setup achievement :)

Fri Jun 01, 2012 3:46 am

Great job!

By any chance, is that ribbon connector compatible with this LCD?

http://www.dealsishop.com/blackberry-curve-lcd.html

I have 3 of them (from old blackberries at work) and I want to use them for future RPi builds. I can't tell from your picture or you youtube vid, but it looks like it has the right connection.

gunflame
Posts: 35
Joined: Mon May 14, 2012 2:15 am

Re: My display setup achievement :)

Wed Jun 06, 2012 1:57 pm

hackery21 wrote:I've managed to get find a nice LCD screen that is 10.2" and an HDMI board for it (HDMI IN! :) ) and I have
Managed to get a deal with a free power cable, but... It's an expensive setup, $200..... Yup...
And another problem, the screen uses a separate
Power supply so... If I decide to make a laptop with this I would be able to power the pi with a battery, but ... You would need to plug in power for the screen... What do you think I should do?...
Could you give us a link for this screen... I'm looking for something like this

adrianrly
Posts: 3
Joined: Wed Feb 01, 2012 2:53 pm

Re: My display setup achievement :)

Wed Jun 06, 2012 2:27 pm

Some ebay links will be appreciated.

chris5287
Posts: 2
Joined: Sat Jun 09, 2012 10:04 am

Re: My display setup achievement :)

Sat Jun 09, 2012 10:11 am

ebay history is a wonderful thing! :D


davy39
Posts: 11
Joined: Tue Jun 12, 2012 8:55 pm

Re: My display setup achievement :)

Tue Jun 12, 2012 9:00 pm

Hi alanrpi,
Thanks for your feed-backs.
I own a 5'' screen so I planned to buy a touch pannel kit : http://www.aliexpress.com/product-fm/54 ... alers.html

Could you please give us some more detailed instruction about make it worked ?

- What are the steps to compile the kernel enabling touch screen support ?
- How have you managed the calibration ?

Thanks by advance !

davy39
Posts: 11
Joined: Tue Jun 12, 2012 8:55 pm

Re: My display setup achievement :)

Tue Jun 19, 2012 12:13 pm

UP!
Does someone have more detailled informations about touch screen installation in Raspberry-Pi ?
Thanks you in advance !

User avatar
Bjarkeah
Posts: 5
Joined: Tue Jun 19, 2012 3:03 pm
Location: Denmark

Re: My display setup achievement :)

Tue Jun 19, 2012 3:06 pm

I have a 3,5" screen at 640x480, but I'm having a hard time actually hitting that resolution. With my overscan options at -18 top and -18 bottom, I get about 648x456. Any tips? :)
Raspi @ 1100 mhz
3,5" LCD @ 640x480
8 gb class 6

aidded
Posts: 3
Joined: Fri Mar 30, 2012 6:32 pm

Re: My display setup achievement :)

Tue Jun 19, 2012 6:57 pm


No , sceriously will you be selling these? how much will they cost? i might buy one for upto £50 maybe?

thanks ,

AvidGamer
Posts: 3
Joined: Mon Jul 02, 2012 10:31 am

Re: My display setup achievement :)

Mon Jul 02, 2012 11:47 am

Hey alanrpi, im looking for more information on this setup you have going.

Ive seen the price and item list you posted, was there anything else that was required that wasnt included with those items? How easy was it to get the display to function correctly with the R-Pi, plug and play? or electronics fiddling required?

I was looking forward to you posting more detailed information in a video that you commented on somewhere. But wasnt able to find anything apart from your ID thing.

Cheers!

hackery21
Posts: 56
Joined: Wed Apr 18, 2012 9:11 pm

Re: My display setup achievement :)

Sun Jul 08, 2012 6:24 pm

aidded wrote:Image

No , sceriously will you be selling these? how much will they cost? i might buy one for upto £50 maybe?

thanks ,
Hey how much wud you pay for a RasPi laptop 8"?

alanrpi
Posts: 8
Joined: Wed May 16, 2012 5:05 pm

Re: My display setup achievement :)

Tue Jul 10, 2012 9:21 am

AvidGamer wrote:Hey alanrpi, im looking for more information on this setup you have going.

Ive seen the price and item list you posted, was there anything else that was required that wasnt included with those items? How easy was it to get the display to function correctly with the R-Pi, plug and play? or electronics fiddling required?

I was looking forward to you posting more detailed information in a video that you commented on somewhere. But wasnt able to find anything apart from your ID thing.

Cheers!
Nothing else was needed. LCD had its own controller and cables included.
4-wire touch panel needed 4-wire touch controller, as you can see from list.
I only needed 12V power supply for LCD. I took that temporarily from external hard drive.
Ofcourse it took few hours on ebay to get right things - I wanted all to be as 'plug-and-play' as possible.

chris5287
Posts: 2
Joined: Sat Jun 09, 2012 10:04 am

Re: My display setup achievement :)

Tue Jul 10, 2012 12:12 pm

How responsive is the 4-wire resistive touch? Is it quite a hard or soft press? Obviously it wont be like the capactive touch that we are all used to now with phones/tablets. I'm wondering whether you would be able to so some gesture recognition (swipe from side to side, pinch to zoom etc...)

TMFS
Posts: 27
Joined: Tue Jul 10, 2012 1:18 am

Re: My display setup achievement :)

Wed Jul 11, 2012 7:28 pm

This is what I have come up with
Attachments

kobzar
Posts: 37
Joined: Tue Jul 17, 2012 1:09 pm
Location: Ukraine

Re: My display setup achievement :)

Wed Jul 18, 2012 5:52 am

are you can mail me instructions ? maodzedun{DOG}gmail.com
No Fate!

cresand
Posts: 1
Joined: Fri Aug 03, 2012 11:10 am

Re: My display setup achievement :)

Fri Aug 03, 2012 12:16 pm

Hi Alan

can you point me at any guides/documentation or even your steps for getting tslib working on your Pi please?

cheers

Jankoflex
Posts: 1
Joined: Wed Aug 15, 2012 8:12 pm

Re: My display setup achievement :)

Wed Aug 15, 2012 8:15 pm

Hi

I've been trying to set up my touch panel (the same as you use) but I'm not a Linux guru. Could you please send me some instructions to help me on the way? My email is janrik @ gmail.com. And I can say, amazing work! :)

doggy
Posts: 6
Joined: Sat Aug 18, 2012 2:09 pm

Re: My display setup achievement :)

Wed Aug 22, 2012 10:58 pm

Great work!

Can someone please write some tutorials for us that dont know anything about linux. I have a 7" lcd with touchscreen, but dont know how to setup and callibrate my screen :(
