DUAL power supply box - 01.11.2013 + 4.3" TFT

Wed Oct 30, 2013 1:00 pm

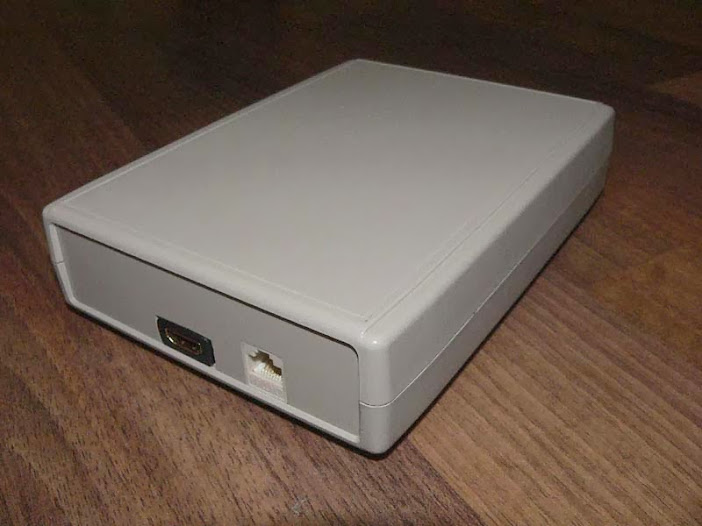

So here is my custom made case for model B.
As you can see, the benefits of this box are:

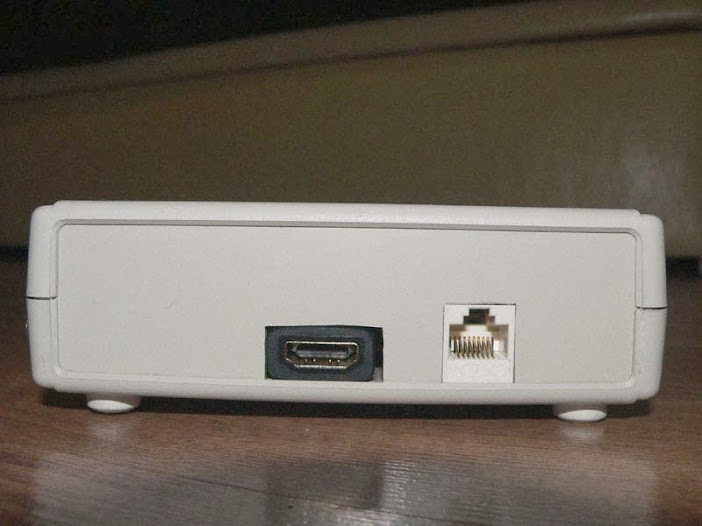

- every plug is doubled and mounted outside the box to avoid any damage (because of use) of the factory plugs which are difficult to replace;
- DUAL power supply - from the wall mount adapter and by the built-in 6V lead-acid battery;
- The battery serves as a UPS in case of a black-out;
- the built-in battery can power up to 2 external devices without the need for powering up the Pi;
- the whole device is pretty compact and suitable for every kind of application;

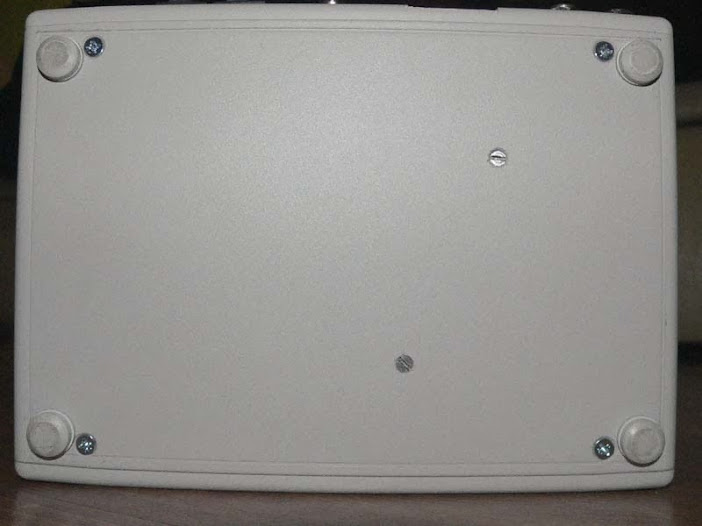

- the rubber legs prevent the case from sliding over a flat surface;
- one free Pi USB plug - suitable for WiFi adapter, wireless keyboard and/or mouse, Bluetooth adapter, internal USB storage;
- the Raspberry Pi board is very steady/easy replaceable - nothing is glued to it and the board holds in place by two screws;
- The SD card is protected and with easy access.


The parts I've used are:
1. White Plastic box
2. 6V 1,2Ah sealed lead-acid battery
3. 5V 1,5A GPS car charger
4. female RCA connector
5. male RCA connector
6. 3,5mm female stereo connector
7. 3,5mm male stereo connector
8. 5,5 mm power plug - x2
9. HDMI M to HDMI F converter
10. Non powered 4 port USB hub
11. mini ON-OFF switch - x2
12. Wall Mount RJ45 plug
13. micro USB cable
14. HAMA 16GB class 10 SD card
15. Old chipset cooler
16. Wall Mount Power Supply 7,5V 1A (enough to power the Pi, all of the peripherial devices and charge the battery)
and of of course the Raspberry Pi itself :)

Here is the internal schematics:

Here is a complete gallery.

"To do more" list:
- install a 6"-7" lcd display on the upper side of the box; - DONE
- install a back-stand;
- install a light-guide for the RPi leds on the front side of the box.

The lead-acid battery i fully capable of powering the system for up to:
~180 minutes with only the Pi switched on and network cable plugged in (~380-395 mA);
~140 minutes with the Pi and USB WLAN adapter (~460-480 mA)
~80 minutes with the Pi, USB WLAN adapter, 4,3" car lcd (LS-430a) (~900-940 mA)
~70 minutes with the above mentioned plus USB keyboard, optical USB mouse and USB flash drive (~980-1030 mA).

Your applause 8-)

Here is the update as promised:

1. The TFT screen
As you can see, I have moved the back-screen keys for the screen menu to the front side of the case for easy access.

2. A side (height) view with the screen:

3. The new circuit:

4. To answer a possible question, that I have been asked myself before the upgrade - YES the composite output CAN provide powerfull enough signal to duplicate the output - on the internal display and on a TV.
Last edited by misho.petrov on Sat Nov 02, 2013 8:26 pm, edited 8 times in total.
1. RPi B 512 MB + Sandisk 2GB c4, vesa mount;
2. RPi B 512 MB + Hama 16GB c10, heat sinks, micro fan, built-in lead-acid battery, duplicated factory plugs, 4,3" TFT, usb mini wireless keyboard, TDA2822 and speakers;
3. RPi 2 + Maxell 16GB c10.
