Camera module – first pictures!

I was sent this image this morning from Gert (not pictured), Naush (right eye and half-moustache) and JamesH (stripy shirt and chin). It’s not a terribly exciting photo – until you realise that it’s the first picture ever taken from the prototype camera add-on board we’re developing for release later in the year, which will plug into those CSI pins we expose in  the middle of the Raspberry Pi. I will ask Gert, Naush and JamesH, who have been working on this in their free evenings, to answer questions in the comments below – they are also very active on our forums, so please come over and have a chat.

We may downgrade the super-duperness of the camera to something with fewer than its current 14 megapixels before release; we need to keep things affordable, and a sensor of that size will end up pricey. Before you ask (I know it’ll be the first question most of you have), we don’t have a price for the camera module yet; we’ll need to finalise exactly what hardware is in it first, but we will, of course, be ensuring that it’s very affordable.

More pictures, including some of the camera module itself with the Raspberry Pi:

Gert (bottom left), JamesH (middle) and Naush (top right) are looking very pleased with themselves. Here's another picture from the camera module, which wishes it had something to photograph besides engineers.

The module is pretty small, which makes it ideal for some of the robotics and home automation applications people have been wanting to build.

The mechanical design still isn't complete, but the final version will attach to the Raspberry Pi with ribbon cable, like this prototype.

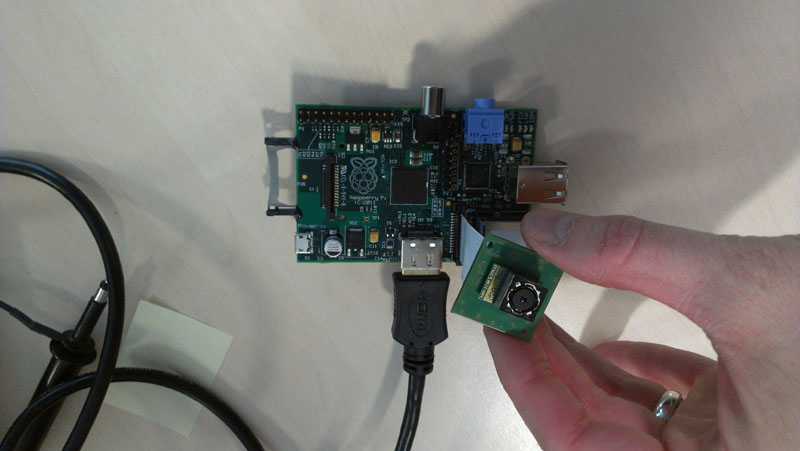

View from above.

JamesH now holds the record for the most random body parts (fingertip, chin) used as feature photos on this website. Congratulations James! (There is no prize.)

186 comments

Avatar

that’s cool

Avatar

Get one it is easy to take the IR filter off please :-)

Avatar

yeah :D that would be awesome!

Avatar

i agree, it would be a nice to have a removeable filter, plus would make up for the MP drop ;)

Avatar

I’ve been thinking about this over dinner, and I’m really keen that you guys shouldn’t get your hopes up about removable filters – the problem is that we will be using cameras which are usually sold as mobile phone or webcam parts, and typically those are pretty much sealed-unit deals where the user doesn’t really get to do even that degree of customisation. We’ve heard what you’re saying, though, and we’ll look into whether it’s possible; but I have a very strong feeling it won’t be.

Avatar

As Liz said I’m not even sure you can even get sensors with removable IR filters. And these things are pretty tiny so difficult to ‘DIY’. I’m check with one of our experts who has some experience with this if I rememeber (he used to work on the camera used for big telescopes)

Avatar

should be no problem to get a cam module without the filter installed. would be awesome.

also: adjustable (high) framerate plz :D

Avatar

if the module has a screw on lens like this http://notbrainsurgery.livejournal.com/38622.html you may be able to mod it but some are as you say not possible to remove, just depends on the manufacturer.

Avatar

Since it will likely be cellphone style camera I am with liz and not holding my breath. But on the off chance that its possible, I would be willing to give up a compact camera for something with a screw on lens. However with price in mind, that would likely rule out auto focus which I am sure others may be hoping for.

Someone correct me if I am wrong, I am mostly basing this on my expirience with FPV model airplanes, though they are analog SDTV style camera’s.

Avatar

That looks awesome, and would be much nicer to use than a USB webcam, etc – which I planned on adding to a robotics project that I am working on.

Avatar

I vaguely remember the possibility of two qualities of camera module. Given what the team has learned so far about the man-hours involved, is that now unlikely?

Avatar

For now, we’re probably just going to do one, which will *probably* be around the 5 megapixel class. We want to concentrate our engineering resources and our buying power – although a more expensive module with higher resolution might be on the cards at a later point, it’s not something we’re actively developing for at the moment.

Avatar

Sign me up as interested in the 14 Megapixel version. (computer vision applications). Glad to see this project is advancing.

Avatar

+1. I would buy a 14 MP camera for my project but 5 MP just is not enough to make it worth it for what I want to do.

Avatar

OK, before I saw this, I just finished posting a comment that a clean 5 MP camera would be far better than what is most likely a more-noisy 14 MP one. I’d hope that a lower-resolution camera would offer better noise levels and low-light sensitivity. 14 MP is way too high for a puny camera like this, and I’d expect that the primary use for a camera on this thing will be video anyway. Why undertake the unnecessary data bloat for all those relatively useless megapixels? How about a clean 5 MP sensor with great performance?

Avatar

I do see arguments for higher resolution – specifically, it means you can do good digital zoom, where physical zoom is unavailable because of the way the cameras for cellphones are built without moving parts. (But on the whole I totally agree with you.)

Avatar

will there be any gpio pins left for people to “get around” lack of a physical zoom?

Avatar

when doing computer vision projects, as opposed to mearly video, the higher resolution camera can be a big win because you have more pixels to use to notice changes in. This lets you detect changes much more rapidly (and/or at much larger distances)

a 14Mp camera will be able to detect a change either about half as large, or at about twice the distance as a 5Mp camera.

not all uses require low noise and low light. there are many where the increased resolution (and therefor tighter angular sensitivity) is far more useful.

If you do make the cheaper 5Mp camera, please post the part number of the camera and the board design (along with the software) so we can build our own.

Avatar

The GPIO pins are seperate from the pins for the camera- the camera ones *might* be CSIO or CSI.

Avatar

Agree about resolution for computer vision. Hoping to use RPi for stereo vision project

Avatar

Can’t wait to integrate the PI with hardware like this. I’m looking forward to getting the my PI.

Avatar

W00t!!! I want one.

Avatar

Great work. An affordable camera option of reasonable quality could be very useful; looking forward to it! (along with the opportunity to actually get just the Pi)

Avatar

…and the people who sell IP cameras are probably getting a bit worried right now :-)

Avatar

If only we had a 24 GFLOPS GPU on the Pi board to do image processing … heyyyyyy … wait a minute … WE DO!!! :D

Avatar

Cool, RaspberryCCTV ;-) Simply add in a Wifi or 3G USB dongle…
Any idea what frame-rate it’ll get? ISTR reading that the CSI has a large amount of bandwidth?

Avatar

That one was running at 30fps in viewfinder mode – I think you can get about 8-10 fps in full res mode with that sensor, but it depends on what resolution you want.

Avatar

So would it be able to record HD video?

Avatar

Yes it would.

Avatar

If we can get a higher-resolution camera in the same product line from the same manufacturer as a special group buy, would it be a fairly straightforward matter of updating some constant or variable values (e.g., image width, height, bit depth, etc.) in the driver for the lower-res camera? Or is there no such thing as a product family where the drivers are that similar?

Avatar

They are never similar enough, even from the same range. And of course as the sensor increases in pixels, they actually physically get larger so you need a new PCB.

Avatar

This will be fully GPU accelerated right, when it is released?

Avatar

Yes. :)

Avatar

Are we talking gpu video encoding acceleration, or?

Avatar

Yes, as this is H264 encoding, part of the camera module price will have to be the license fee for that.

Avatar

It is very good to hear there is a possibility for the h264 encoding license. The bcm2835 used in raspi only contained a license for h264 decoding. This way, users who wish to use it can purchase it without increasing the price of the bare computer :D

Avatar

Aww!

It’s so [i]cute[/i]!

Avatar

This is great. I really look forward to the video possibilities. And the possibilities of what the hackers will make it do. Exciting times, especially seeing as today I got my golden ticket from RS for my Raspberry Pi.

Avatar

That’s awesome. Maybe there will be a PiCam soon :)

Avatar

Can I preorder now for Christmas?

Avatar

I would finally expose the counter units sold of pieces that we have an idea how we’re doing thanks

Avatar

Of course you can.

Did you have a particular Christmas in mind?

Avatar

How about the one when it finally snowed on Christmas Eve and Dad came home with a car full of presents and Mom made those really good cookies and…..
Oh, wait. I have to build my Pi based time machine first.

Avatar

I can see in the first picture it’s running Windows with the debugger and the module picture.

Did you stream the picture/video to the PC via Ethernet ?

Avatar

How do you know that is Windows? If it is the transparent title bar, my laptop has had that using Emerald since before Vista came out.

Avatar

Location is listed as C:/projects/raspberrypi/…

Avatar

In the first picture, the Videocore on the Raspi is being run via a JTAG debugger running under Windows. That’s how we bring up cameras, and we can dump images direct to debugger display .
Other pictures are taken of a piece of demo/test software we use for further development, which is why they are photo’s of the display.

Avatar

The “C:/projects/raspberrypi/…” is a bit of a giveaway ;-)
I suspect it’s simply the http://www.synopsys.com/dw/ipdir.php?ds=arc_metaware_debugger running under Windows – the debug connection between the Raspi and PC could be over any number of interfaces (probably JTAG though). This isn’t “proof” that the Raspi can run Windows :-P

Avatar

Yay, I guessed right :)

Avatar

What’s the maximum length of a camera cable?
And will the RasPi be able to do a hardware accelerated encoding of a fullHD video in MP4 format?

And finally, what about a display add-on on the DSI interface? :)

Avatar

Length – probably not much longer than you see there – the signals are pretty fast, and the longer they are the less chance of working.
Yes, the GPU can encode the camera stream to H264 at 1080p30, but that does require a licence from MPEG_LA.
Display – one thing at a time!

Avatar

The last thing you want when bringing up a new device, is worry about signal quality. Thus we started with a very short cable. The cable you see is 51mm. We also have cables which are 150mm which we will try soon. The manufacturer says these are 50Ohm cables and they are designed for the 600Mbits/sec we need and can even exceed that speed.

Avatar

I bow to Gert’s much greater knowledge on this!

Avatar

Well.. my answer was “We don’t know yet, we have to try”.

Avatar

I’m just thinking of my 2nd RasPi as a CarPC with a (preferrably) FullHD dashcam.

p.s. … but still haven’t got my 1st RasPi ordered in the launch day. Farnell, come on!

Avatar

Yes, but you said it all fancy like :-)

Avatar

Very nice. Raspbian earlier today built the OpenCV libraries with hard float math so having a camera feed into the capabilities of OpenCV will mean some very cool applications will be possible. I’ve done some OpenCV projects in the past and I’m eager to give it a whirl on the Raspberry Pi.

Avatar

In my opinion, a WLAN module would be much more interesting. Any Plans to develop one?

Avatar

You will need to use a USB one – incorporating WLAN would need a HW change.

Avatar

Do you have more information on which sensor it is? Manufacturer and model, for example?

Avatar

This one is an Omnivision 14MP.

Avatar

Excellent. You have just saved me a huge amount of time doing this. I am still awaiting my board to be shipped but what you have done here is key to what I had planned.

Avatar

Very ‘cute’ indeed… I will look forward to ordering one of these… once it has passed its full ‘certification’ or whatever, of course! ;)

Avatar

If you’re using CSI technology, doesn’t that mean you could just have a 0.5MP camera and keep commanding “Enhance!”? :P

Avatar

CSI is just an electrical interface which transports data. It has no effect on the quality of the picture other then it arrives or not.
“I am not able rightly to apprehend the kind of confusion of ideas that could provoke such a question.” :-)

Avatar

I think you’ll find Shish was referring to the TV series “CSI”. Wherein a grainy 160×160 pixel image grabbed from a black and white CCTV camera can be “enhanced” to a hi-def colour image of the reflection in the subject’s pinky ring, thus revealing that the killer was, in fact…

All by someone saying “enhance” “flip” “zoom in there”, aided by teh majick of the computar-machien.

Avatar

Sorry, never watched that! But I have seen that technique on other movies.

Avatar

Actually, if you can take multiple frames (the more, the better), you can actually generate a higher-resolution image than any single frame as noise can be canceled out as image data is mathematically summed for each pixel. This requires registration of objects in the frame to ensure pixel-per-pixel overlap. This is how the Hubble Deep Field images are generated which detect galaxies back to within a few hundred million years of the Big Bang – except that they boresight the telescope/imager on a single point at maximum zoom power for weeks at a time and collect millions of images that then take months to process. Having the GPU will be handy for this.

BTW, if the camera and/or object move within the frame, 3-D data can also be extracted, even within a couple of frames of real time, given a fast enough GPU (ours should be plenty fast enough).

Avatar

that’s awesome!

Avatar

Don’t forget the essential beepy-squeaky noises that all hi-tech equipment makes on TV and film…

Avatar

This will definitely work for the rpi: http://www.youtube.com/watch?v=JMIHNiR3CP8

Avatar

This ->”JamesH now holds the record for the most random body parts (fingertip, chin) used as feature photos on this website. Congratulations James! (There is no prize.)”
really sounds like some quote from Portal. Replace “prize” with “cake” and it would be even nerdy-er.

Avatar

I’m swelling with pride. I expect that swelling to make it on to the site soon as well.

Avatar

I hope not. This is supposed to be family friendly.

Avatar

i don’t know what would be more “family-friendly” than someones swelling :-P those… fam-things do have to come from somewhere you know :-D

Avatar

14 megapixels?

Heck, even 1 megapixel is overkill if the sensor is of good quality! Remember that the human eye can be seen as a 1~2 megapixel “camera” (though at like 100fps, insanely good low-light sensitivity and 16 steps of light difference)

Also are these really the kind of things put into cellphones? The Camera module in the pictures is absolutely enormous!

Avatar

A lot of people get hung up on pixels. It’s the lens that matters more. 5 Megapixels will be plenty. Eyes are awesome ADCs :)

Avatar

Take a look at this pic
http://s175.photobucket.com/albums/w143/JamesHughes_photos/RaspberryPi/?action=view&current=CameraSensors1.jpg

These are : VGA, 5MP, 8MP and 12MP sensors from various mobile phones. The 12MP has a focusing lens. The 41MP sensor in the Nokia 808 is considerably bigger than the largest one here. The 808 sensor takes stunning photographs – so this is a case where megapixels are put to very good use.

The module used in this demo was 14MP, and in size if somewhere between the 8 and the 12 in size.

Avatar

I’ve seen 2MP cams from years back which take far superior photos to some more current 8MP/12MP – please consider using a focusable cam and not a fixed focus – macro would be nice although I don’t think that would be justified in a robotics/automation setting.

Avatar

Cost cost cost and more cost. Focusing lens cost a lot more. Also because they are infrequently used, we only have tunings for a couple of types (I think – would need to confirm), one which is end of line and one other, which I think is also end of line (that’s 12MP from the Nokia N8). See Gert’s post below for why we need to choose a camera with an existing tuning.

Avatar

Hey, does this also mean that you guys also implemented a I²C-Kernel-module?
When are the drivers available? :)

Avatar

No, the camera talks to the GPU, not the ARM.

Avatar

Ah, ok – I thought that the commands like preview mode/shot/configuration are made via I²C…

Avatar

They are, but from the GPU, not the Arm.

Avatar

Awesome.
Please consider offering at least a 720p camera. If you decide this would not be cheap enough you can offer two models: a cheaper model, for example 640×480, and another, more expensive HD model too.

Avatar

I’m pretty sure 1080p30 will be available. Most sensors are quite capable of that – remember 1080p is only about 2MP.

Avatar

High quality camera module please – useful for computer vision / schools etc. etc. It’s not as if most of us are likely to integrate very expensive camera lenses in front of this … AWESOME projects to come :)

Avatar

Well, we have to trade off against price – but generally these sensors are not too bad. I’ll try and get some full res images and post them up.

Avatar

if the module has a screw on lens like this
http://notbrainsurgery.livejournal.com/38622.html
you may be able to mod it but some are as you say not possible to remove, just depends on the manufacturer.

Avatar

Very interesting. I’m wondering if there’ll be some kind of easy to use librarys for it ;)
Also I’m thinkin about a Project with a camera module in my Bachelor exam next year. Something about cameras, lasers and radarstations on streets ;)

Avatar

Just some background information (These comment have been posted on the forum on several subjects about ‘CSI camera’ but not everybody will have seen those).
Electrically connecting a camera on the CS interface is a challenge but it is only fraction of the job. Most of the effort involved with cameras is getting a good image quality. The GPU has an ISP (which here stands for Image Sensory Pipeline) which does A LOT of post-processing on the raw camera data. Every camera module which is connected to this ISP needs tuning. We have a team of people working about 6 months to get a good quality image out of the camera. (I think some of them have doctorates in computer images maths) Thus ‘adopting’ a new camera is not a trivial task and is not something which can be done ‘just’ in the evening hours like some of the other work done by my colleague Broadcom volunteers. This means that whatever camera module will be chosen, it has to be one where that tuning work has already been done. This also means that I strongly discourage anybody out there to try to do the same. You are welcome to try but are likely to fail utterly. You first do not have the knowledge of how the ISP works and secondly I doubt you have even a fraction of the total experience our teams has build up over the years.

Avatar

Note to self: Do not use &sm or &gr in text. It seem to have missed a line and made the following text italics:
“I hope this is also reduced the flood of emails from Camera vendors who want ‘their’ camera connected to the Raspberry-Pi”

Avatar

“We at NASA will have some leftover very high-resolution imaging devices that cost hundreds of millions of dollars to develop, which will be available to the highest bidder at a disposal auction to be held in a few years. Oh, rats, we can’t go retrieve them without a Space Shuttle … well, that was really poor planning, wasn’t it?” ;)

Avatar

It really surprises me there is so much work put into post-processing of digital camera data. I’ve owned many different cellphones in the past. All of them were very different in each and every perspective, except for one and that is the absolute terrible camera quality. On several windows smartphones there were even applications that were able to post-process predictable noise data out of images because such cameras usually had some noise in predictable locations. It’s only been the last couple of years that mobile phone cameras are finally moving away from their 2000s webcam quality.

I hope that nowadays such joke-cameras are no longer being put in high-end mobile devices. With a team so very qualified, there is hope for the raspberry camera!

Avatar

Nice! I want one! You do know it will have to be called PiEye dont you? :)

(Posting this from my Pi running Iceweasel on Hexxeh’s build of Debian hard float)

Avatar

just wondering why JamesH is wearing a checked shirt in the second picture, and a stripy shirt in the first picture

Avatar

JamesH owns more than one shirt. It makes the laundry easier.

Avatar

I sweat a lot!

Or, just maybe, the pictures were taken at the end of one day and the beginning of the next.

Avatar

Because they have to work after hours. So the first picture was taken when they got it running which was late in the evening. The other was a quick ‘Look Gert it Works’ demo the next morning.

Avatar

One of them is obviously his evil twin. The real question is which one?

Avatar

You’re assuming that only one of the twins is evil!

Avatar

4 possible answers here.
A) Checkered
B) Stripey
C) Both
D) Neither

Perhaps someone could conduct a poll?

Avatar

Please Please Please offer a hi-res (10mb+) option. Please! Please!!!

Avatar

This is a nice looking project, and I have a few observations.
We should never forget that this is a £25 computer board. As such it would make no sense for the camera (or other, later add-ons for that matter) to be expensive. If you’re looking to do high-res/high-quality robot vision, you’ll be looking at a much better quality camera and lens than the plastic, mass-produced phone-cam example here.
If you’re not into robot vision, then there’s not much to be gained from having a camera resolution greater than the resolution of the display. So anything better than 1920×1080 would be a waste – both of camera/cost and processor cycles on the Pi itself.

So if the camera was to cost more than £2 or 3 in quantity, I’d reckon that would not be a good match for the Pi and would certainly dampen the spirit of the whole low-cost concept of this device.

Avatar

Sorry Pete, I disagree with almost all of that. Modern mobile phone sensors are MUCH MUCH better than you seem to this. I challenge you to take a look at images from the Nokia N8 and Nokia 808 (both use the GPU we have here) and then make the same assessment you just made. Even the EDOF sensors (no focusing lens) used by many mobile companies can take very good imagery. Of course there are some real dogs, which is usually down, not to the sensor, but the tuning. And of course, really cheap sensors are exactly that.

As to price, well, if its too expensive for you, don’t buy it. You still have your $25 computer. This is an option for people who want a camera. A £2 camera would I’m afraid be a waste of money.

Avatar

That is really cool! I had no idea it was so much work to tune in a camera as has been described here. I can certainly see some interesting possibilities resulting from your groundwork. For the record, price is a factor, and I think you’ve made the trade off as practical as possible…

Avatar

Well at least we know if the gig at Broadcom doesn’t work out for James he at least has a fall back career as a chin model.

Avatar

Please DO reduce the resolution! On such a puny camera, it would be far better to have a CLEAN 5 megapixels and better low-light sensitivity than 14 megapixels of noise-riddled hash.

Sensitivity and clean imagery are by far the most important characteristics for a camera like this.

Looks great so far!

Avatar

Well that’s another problem solved. Thank you.

Avatar

Can we have some more solid details about the sensor? Will we get a decent datasheet, will we get source code for the drivers? Will we just get a lib and headers? How controllable is the camera? Will it do stills? I would really like a stills based camera sensor on the pi, long exposure would be fantastic, any chance? Pretty please? :D

I have an astronomy project that I will be running on the pi, with webcams and astronomy cameras, so a pi based one could be very useful!!

Avatar

For the folks who want to use a fancy camera with the Pi, can’t that generally be done through a USB interface of some sort? I thought the main point of a “raw” camera module interfaced straight to the GPU was the price (maybe, also size).

Avatar

The USB link rate always limits the video quality. The effective data rate of USB is far below the 480 Mbits/s. The CSI camera talks to the Raspi using two 600Mbits/sec lanes. Also all the CPU power to receive the data leave little space for any processing data. Having it all in one device just means less data shuffling around and that is generally a good idea.

Avatar

I’ve posted more details on what possible in the camera thread in the forum.

Avatar

To me, it just has to be sharp enough so that my new Roomba Pi Robotic Security/Vacuum Cleaner Device can differentiate between an intruder and the cat in the middle of the night. It pains me no end when the thing Tasers the cat…

Avatar

Yet the dogs find it hilarious.

Avatar

Now we have a camra and some IO boards appearing, can we re-launch the 1990’s robotic table tennis computition!

I remember entering it (won 2, lost 1 and tied 1 rounds and than had fatal hardware error table tennis table collapsed on robot stand)

Avatar

Could the hi-res be replaced by two lo-res giving two pictures diagonally opposite on one image for stereo processing?

Avatar

Considering the past achievements of the team in price vs. performance so far (by creating the Pi itself), I have every confidence that that we’ll all be impressed with the final product…

Avatar

Awesome! I won’t mind the MP dowgrade at all. 5 MP would be more than enough!
Just one small question: How are you supposed to ‘mount’ the camera? It wouldn’t be very handy to stick a Raspberry Pi on your monitor or have it on your desk with the camera pointing to the ceiling.

Avatar

Event if it is a prototype board, I did make two holes (2mm diam) in opposite corners. There is a screen shot of the camera adapter board in the CSI thread on the forum. As mentioned elsewhere: the issue is how long can we make the cable and still have it work reliably. Otherwise the holes don’t help much either.

Avatar

Congrats, guys, very nice work. Not sure if you are using the OV14810 or OV14825 but either way an excellent choice for an image sensor. I looked at using this for the camera project I am (still) working on that I mention here form time to time, but rejected it for my purposes since it is a rolling shutter rather than a global one which limits its abiility to deliver detail on moving objects. This is absolutely a picky point, overall this is an EXCELLENT video sensor and I hope you build it up into a full camera module.

http://www.youtube.com/watch?v=OIDd9cXAnGc

http://www.ovt.com/products/category.php?id=14

For some details, here’s links to the spec sheets and also a nice YouTube video that shows what I mean about motion blur using this sensor – overall very nice image definition and color, but you can’t read the text on the side of the toy train.

Avatar

1080p30 H264 stream? Nice!

Avatar

That’s not a rolling shutter issue, that’s simple an exposure time issue. I’m assuming 1080p30, so presumably the camera is exposing for as long a period as possible to reduce required gain, so about 1/30s, and I would expect that sort of blurring at that exposure time.

Not to say global shutter are not a better option for still capture when objects are moving fast.

What ISP was being used?

Avatar

nice work its awesome

Avatar

I see Gert van Loo has mentioned a data pipeline of 100s of mbits per second.

Can anyone give an estimate of how long it would take to send a complete 5 megapixel camera image, uncompressed, and get it pushed to the Pi’s data card?

I’m interested in single images, not video, and I’m wondering what sort of fps rate could be hoped for given a 5 megapixel sensor, for obtaining and storing a continuous stream of uncompressed images.

While I’m asking, I wonder if it will be possible to just request a continuous feed of values from a single row of the image sensor, and whether that would increase the fps that might be received? And would there be a low-res mode that would allow faster retrieval?

Thanks.

Avatar

I suspect the limiting factor will be the SD card write speed. An uncompressed 5 megapixel image will take up 15MB of space on disk, and ISTR that various forum threads have said the RPi can currently only write to SDcard (even high-speed ones) at about 4mb/sec (may be improved later?), so theoretically you’d be looking at about 4 seconds per image. If I’ve got my sums right, that means you’d be writing a gigabyte of data in less than 5 minutes. There’s a reason people use JPEG / H264 compression ;)
I have absolutely no ideas about your other questions!

Avatar

Thanks. I wonder if the resources of the r-pi might be able to compress a 5 megapixel image to a more reasonable write size in a less than one second window? I’m hoping to build an inexpensive hand-feedable replacement for a single sided document scanner out of an r-pi, a tripod or frame, and some leds.

Avatar

Well, the Pi can encode 1080p30 in real time. Stills to JPEG are not real time, but still faster than the SD card can write them I think. Easily faster than the 1 second you ask for. We have some phones using video core which can take at least 5 frames a second at that sort of resolution IIRC.

Avatar

Thanks. That sounds very promising.

Avatar

Allman style FTW.

Avatar

Please design a camera version with a short ribbon and one with a long ribbon. This will help people who have complex uses for the camera who need it some distance from the Pi board. Also it would be great if you could avoid using a hot filter on the camera units. Make it a bare bones photo sensor and let people add filters as and when they need them. It is really hard to remove them once they become built in.
Keep up the good work!

Avatar

The ribbon cable is detachable. So you buy your own and swap it. We have to try and see what maximum length still works. (At the moment I know only one supplier in the UK which does the 15-wire version and that is Toby.)
But the Raspberry-Pi computer is so small you can hide both in a small box.

Avatar

Shall we wait for the LCD?

Avatar

will we be able to change the shutter speed and ISO??? Or is all of it auto???

Avatar

There’s more technical details in the forum http://www.raspberrypi.org/phpBB3/viewtopic.php?f=43&t=6120

It’s such early days, a lot of this is undefined as yet.

Avatar

Many thanks…I was thinking about both of those as I would buy this camera for astrophotography…make my own observation telescope…hook the Pi to a large SSD and record year ’round…

Avatar

Awesome, the output looks really clear too!!

Avatar

Why not to made 2 versions of cam module? One cheap web cam and second to make from raspberrypi a photo camera (cheaper then other cameras on market)

Avatar

It would be good if you had a, say 5MP model and then your original 14MP model.

Just an idea!

Avatar

I am interested to hear more about the H264 1080p30 encoding license cost.
1) First, does the cost of the camera module include the the license fee?
2) If not, how much will it cost?
3) Does it need signing any NDA? If yes, can a hobbyist get one?

Avatar

As mentioned: we are in the very early stages with the camera development and still have to sort out lots of details. But yes the camera module will include an H264 encoder license and no you can not get the module without the license or vice versa. That would be an administrative nightmare. No NDA as that would be an even bigger administrative nightmare. Details are not know yet but I suspect the H264 encoder will only be usable with the camera input.

Avatar

Thanks, that clears things up. One more question. Will it be possible to use the H264 encoder and decoder simultaneously? Does the GPU has the ability to do both together?

Avatar

I realise the impossibility of what I’m asking, but do you have some sort of very rough estimate about when it’ll be up for sale? Later in the summer, early autumn, late autumn, winter, next year?

Thanks!

Avatar

yes, you are asking the impossible but my guess is probably late Autumn, at least before Christmas. As with the Pi we have to get manufacturing sorted out but in contrast to the Pi, there is only one difficult component and that is the camera itself.

Avatar

Great, thanks! Really looking forward to it! :)

Avatar

My dream is the Raspberry Pi camera module allows us to implement an open-source movie camera, like the “Apertus.”

http://cinema.elphel.com/

Avatar

great idea. just wondering if you are going to make a screen for the r-pi

Avatar

I think you should provide several options for the camera size. I think you will be surprised how many people would be prepared to pay the extra for the 14 Mega pixel module.

I am really happy you are providing a camera module, but I have to ask what is the maximum distance the camera can be mounted away from the motherboard? I have built my own motorcycle camera system that powers on and begins recording within 20 seconds of the ignition being turned on. This utilises an Alix system board, a Mini PCI capture card and remote bullet camera. Ideally, I would like to replicate this setup with the Raspberry Pi, having the camera mounted on the front of the bike and have the Raspberry Pi tucked away from the elements and where it can’t be accessed without a key.

Avatar

We recently tried a 150mm (15cm) cable and that worked. That does no sound much but it is more then enough for most applications.

Avatar

Was just thinking the other day that a USB Microscope would be a good project to get working with the Raspberry Pi, perhaps a variation of your camera module could be a Microscope?

Avatar

Get cracking guys – I’ve got a baby due in mid-October and this would be a great baby monitor!

Avatar

This will do amazing for security applications. Great works ladies/gents!

Avatar

Wow! A lot of possibilities if this is combined with something like QR Code reading software, not to mention other computer vision projects.

Avatar

This is incredibly exciting! I am a complete newcomer to the programming world and hacks like this make me so excited!

I was wondering whether Gert, Naush and JamesH would be interested in helping me make the camera hack for the raspberry pi available for legal observers on protest? I realise it is still a prototype but I think it would make our work so much easier! If this interests you then please reply to this message and i’ll send you an email :)

Avatar

Hi, cant wait to get my hands on this, small suggestion, sorry if its already been thought of, but why not make available cams with different MP sizes, as i can think of use for both?

Avatar

There !might! be a 14MP commercial camera alongside the foundations 5MP camera….

Avatar

Hi,
It would be great to get http://fcam.garage.maemo.org/index.html running on raspberri pi + camera
Any idea when the module will be available ?
Good job and good luck

Avatar

That is totally awesome. Now what we need are CUDA drivers for the obviously quite capable GPU, so we can build an image processing module that can do feature tracking / object recognition / … stand-alone!

Avatar

Coool …I neeed it……

Avatar

Wow! It appears that there is a second 15 pin plug on the left-centre of the RPi (the same as where the camera is plugged in now). What’s that for? Would it be possible to plug 2 camera modules into the RPi at the same time?

Avatar

Sorry, no camera.That is a DSI (Serial Display Interface) port. It is just like the CSI but just in the opposite direction. In fact you could connect the DSI of one Pi to the CSI of another for a 2Gbits/sec link :-)

Avatar

And to think I was *this* close to spending £250 on a GoPro Hero 2!
Can’t wait to try this out in the wild – I’m envisioning a Bramble of Raspberry Pi + Camera modules attached all over my Mountain Bike and Helmet all syncing their 1080p streams for some serious playback & telemetry gathering.
Can’t wait!

Avatar

will this be avalible soon and if so will it be an add on that we can buy seperatly??

Avatar

A camera is neat and all, but I’m much more interested in a display module for the DSI connector so we can see some really cool portable projects.

Avatar

Everyone check this out

http://graphics.stanford.edu/papers/fcam/

the webpage links to a dissertation about this topic. It’s not directly related to RP but it really expands on the topic of a programmable camera and the problems and some alternatives that exist.

Avatar

When will it be released for the market? Another interesting could be, if Raspberry PI can work with akku ;).

Avatar

+1 for the 150mm cables, 51 is just too short to do anything really useful applications such as custom panoramic cameras using 4-5 PIs. Some major potential here, as soon as I see them avail I’ll buy 5!

Avatar

14 MPx may be somewhat more pricey than 5 MPx, but dammit I want one!

Avatar

Shut up and take my money

Avatar

Will the camera module be available in a monochrome format as well? The project I have in mind would benefit from not having the bayer filter in place.

Avatar

I want to know when it becomes available!!!!!!!!!!!!!!!!!, Coptexth it’s awaiting!

Avatar

What to do? Order R-Pi now and wait for the cam module to be available later, or pre-order it, or pre-order a full pack?
1,000 thx, I’m in a desesperate need of this :)

Avatar

I know this is a bit too late to ask, but why is the RCA connector blue?

Avatar

I am in need of this. I will sell you my blood for this. What is the timeline on this anyways? Its been a while, and I was hoping, dreaming to hear more. Another post soon please!

Avatar

Any update on this?

Avatar

You guys are truely amazing. It’s going to be GREAT!

Avatar

Can’t wait! I’m up for some OpenCV or SimpleCV experimentation.

Avatar

Is there any roadmap for the release ?

thanks.

Avatar

Have you seen Elphel’s Open Hardware 5 MPix CMOS sensor front-end ?
http://wiki.elphel.com/index.php?title=10338

Avatar

Any updates on when this will be available?

Avatar

Some time early in the new yea we hope. Quite a bit of testing to do first (software and for compliance)

Avatar

Any update?

Avatar

Will there be a way to get live analog video out? Need the ability to monitor for my application.

Avatar

It’s possible to shutter 6 diferente raspebery pi with 6 camera modules at the same time?

There is any program that do that sync 6 raspebery pi with the camera?

Avatar

Camera software-

I need 2 cameras for binoc vision. Only one camera can be ribbon connected, correct? How are others dealing with this?

Avatar

I would like to know the syntax of how you save an image or a movie. And if there an application that allows you to access the cam via the GUI. Thank you.

Leave a Comment

Comments are closed
