Case Design Challenge: Media Centre


24 posts
by mole125 » Mon Mar 26, 2012 10:32 am
There are a lot of competing case designs going around the group.

Many of them are very good but all of them seem to be following exactly the same premiss of making a box as small as possible to fix an RPi. This is almost certainly going to be the design that the foundation will be creating for the educational marked as well.

Rightly or wrongly many people are planning to use their RPi's as media centre PCs running XBMC (or similar) situated under their TVs, yet no case design I've seen actually addresses this market even though these people are likely to be less sensitive to price and you won't be competing against the foundation.

The key features as I see them are:

1. Case designed to look tidy and not out of place under the TV. This implies (to me) that there aren't cables coming out of every side and the case may well need to use extension cables to route the sockets to a more pleasing location.

2. Location for IR diode at front - infra-red remote controls are still king. This is also why a back mounted attach to the TV case isn't suitable for day to day home use.

4. Space in the case for a USB hard drive and sufficient power/cabling to drive it - this probably implies a powered USB hub in the case as well.

5. Useful ports at the front like additional USB socket(s) for plugging memory sticks in.

6. LCD screen and playback buttons on the front - if you really want to provide the home appliance look and feel

The LCD screen, playback buttons and IR diode probably means that the case would need a small microcontroller hooked up via either GPIO or usb, I don't think this will need to be a particularly complicated or expensive piece of circuity though.

Is anybody up to the challenge? Even if it is just concept artwork and not ever intended to go into production?
Posts: 228
Joined: Tue Jan 10, 2012 2:01 pm
by C4B7 » Mon Mar 26, 2012 11:28 am
Challenge Accepted.
Posts: 39
Joined: Sat Mar 03, 2012 4:58 am
by fodi » Mon Mar 26, 2012 7:08 pm
you should redesign an existing device with appropiate size, like a set-top-box or satellite receiver, i'd say. they look consistent with tv's, they have a stylish front panel, have space for a small lcd (like a hd44780) in the front (to replace the original one), usually some playback buttons, that might be re-routed with some cabling to the pi itself (like gutting a usb game controller and resolder the stb's buttons to it, then with some sowftware you could use them for actual playback), and have plenty of space to accomodate the board, a usb hub and a 2.5 (maybe even a 3.5) hard drive and have space on the back panel to re-route all the cables there. plus usually they have an ir diode built-in, if you put yours to the same place it would allow a good sight for the remote.

of course it is not an option for everybody, but it might be for some
User avatar
Posts: 112
Joined: Wed Mar 14, 2012 9:03 pm
Location: Hungary
by HansH » Tue Mar 27, 2012 9:06 pm
Well not exactly what you want, I just was interested in how it could be mounted





Case is 10 x 15 cm  (2.5 cm high)

My intension was to get the hdmi cable and an usb from the tv through the opening in the back and use the 2 usb slots for a bluetooth and wifi.
Posts: 212
Joined: Mon Sep 05, 2011 7:49 am
by hippy » Tue Mar 27, 2012 10:32 pm
One 'avoid the problems' solution is to just sling the R-Pi round the back of a TV and hang the IR receiver on a bit of cable out the front.You can do that with thin three-core cable, possible even two-core with a bit of electronic circuitry.

A text LCD isn't essential if it's mainly a video media centre as you've got the IR remote to access everything and a TV as GUI. I can't remember when I last operated any of the buttons on the kit beneath my TV.

If going for an under the TV box then I reckon for cabling it's easiest to fit those direct to the R-Pi then have them run through holes in the case rather than having to find and pay for extension connectors. It's not elegant but once installed you'll likely soon forget that it's a bodge.

The first things to decide are; is it a one off or a more commercial venture, whether you are more interested in having an elegant box or a working solution, how much you are prepared to pay and is it worth that expenditure.
Posts: 807
Joined: Fri Sep 09, 2011 10:34 pm
by abishur » Tue Mar 27, 2012 11:06 pm
My solution to this dilemma is to either hide everything inside my classic NES.  It actually runs of 5Vs so I removed the the voltage regulator and tapped the power supply inside the case to provide the power.  Then I bought a panel mount USB and Network extension cable and modded the case to fit them.  And doing it all without removing the original NES!

I think I might eventually move to a long term solution of a lego case with a single hole for all cables to come through in order to minimize the space taken in my entertainment center :-)
Dear forum: Play nice ;-)
User avatar
Forum Moderator
Forum Moderator
Posts: 4280
Joined: Thu Jul 28, 2011 4:10 am
Location: USA
by averagemidget » Wed Mar 28, 2012 4:42 am

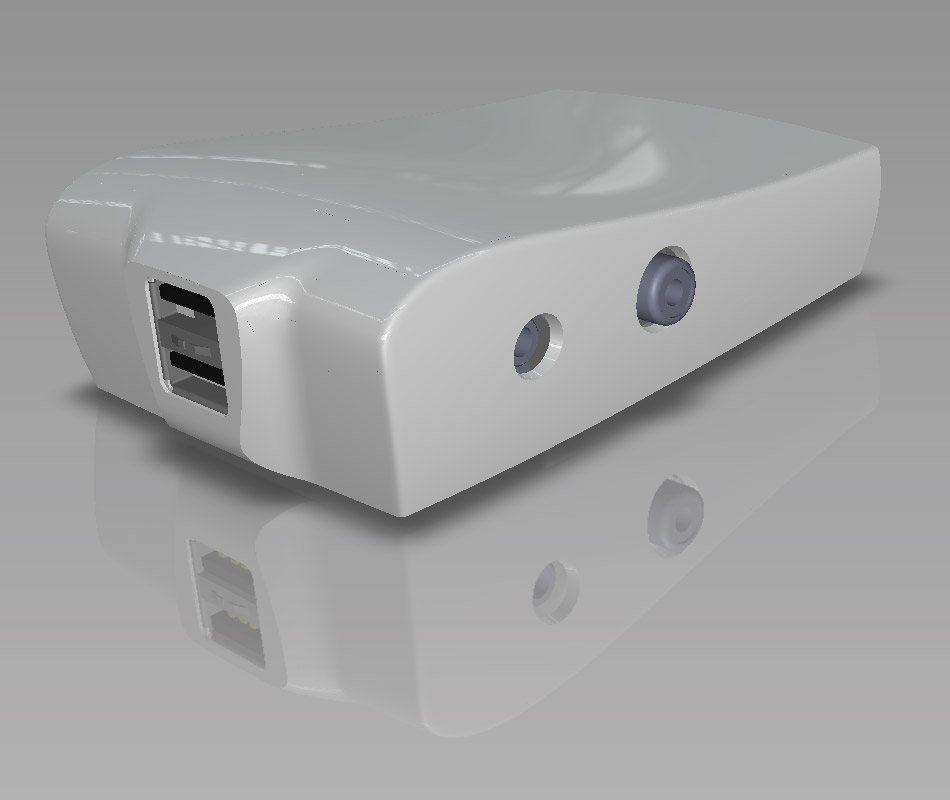

Not exactly media center territory but this is my attempt at getting away from the standard "box" style cases that seem to be floating around. A little more "designery". What do you think?

RPi Case Concept

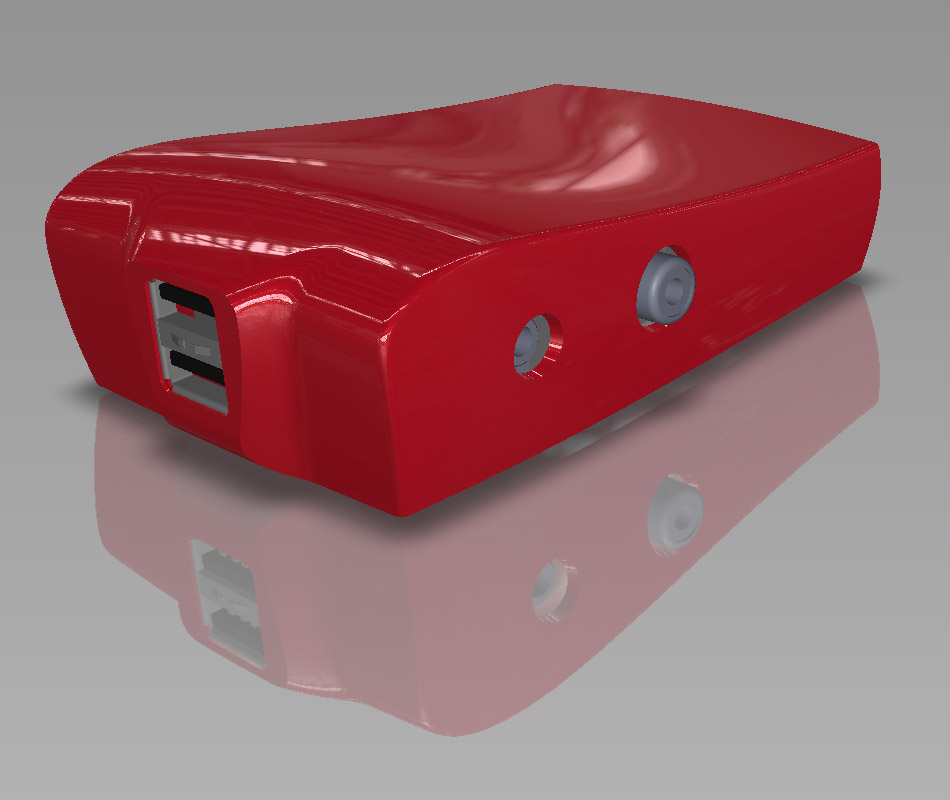

And in sexy red…
